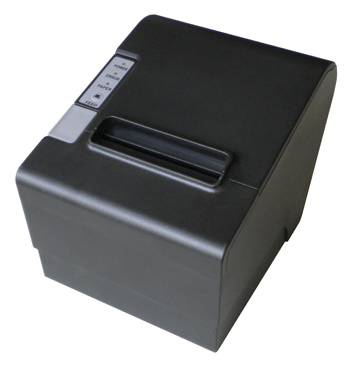

	Thermal Receipt Printer With Cutter   　Model: POS80B-AL 　Color: Black

　　Applications:
　　Widely used in business cash registers, chains, PC-POS, POS bank, as well as the hotel, catering, entertainment and other service industries of all kinds of paper printing.

　　Function & Features:
　　◆　Small size, light weight, function perfectly, stylish, practical good.
　　◆　Easy paper loading structure, Reload paper roll is very quick and easy.
　　◆　Support the common nine kinds of one-dimensional bar code printing.
　　◆　Support for simplified Chinese, English and other ANK character printing.
　　◆　Can be installed 80mm diameter paper roll, get rid of the trouble often reload the paper.
　　◆　High print speed & low work noise, over 150mm/s print speed.
　　◆　With three communication ports: serial port, USB port and Ethernet port.
　　◆　Can setup baudrate of serial port to 9600bps, 19200bps, 38400bps, or 57600bps.
　　◆　Eight function or parameter switch: serial port baud rate, alarm, automatic paper cutting, font size, print grayscale.
　　

　　Key Parameters:

ITEM	PARAMETERS
Print method	Termal dot line printing
Print color	Black
Print density	203dpi/inch(8dot/mm)
Print dots/line	576
Print speed	≥150mm/s
Paper load method	Easy loading
Print head life	≥50Km
Paper cutter life	≥300 thousands times
Print paper	Thermal Paper roll,80±0.5mm(W)×?80mm(max)
Print width	72mm
Communication ports	Serial port, USB port and Ethernet port.
Compatible command set	ESC/POS
Character size	ANK Character(12x24dots,1.5mmWx3.0mmH), Chinese(24x24dots,3.0mmWx3.0mmH)
Character set	ASCII, GB13000
Printing content	Chinese, Englis letters, Arabic numbers, Symbol, curve, Image, etc.
	Barcode: CODE39/93/128, CodeBAR, EAN-8, EAN-13, UPC-A/ITF, etc.
Image Printing method	Direct print/page mode
Power adapter	Inupt: AC100-240V 50/60Hz, Output: DC24V/2.5A
Output of cash drawer port	24V/1A, Support 12V&24V Cash drawer
Net weight	About 1.3Kg
Dimension(mm)	147×196×146(W×D×H)
Work Environment	Temperature: -10℃~40℃; Humidity: 20%~85% RH
Storage Environment	Temperature: -20℃~50℃; Humidity: 10%~95% RH
