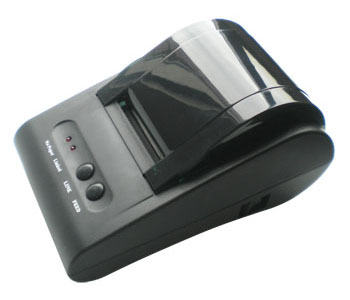

	Thermal Receipt Printer   　Model: POS-58B 　Color: Black

　　Function & Features:
　　◆　Easy paper loading structure
　　◆　High print speed & low work noise
　　◆　Easy to operate & reliable
　　◆　12V and 24V Cash Drawer adaptive control interface
　　◆　RS232 & USB communication ports
　　◆　Enormous word memory and GB13000 type of Chinese characters built-in
　　◆　Can be set to print 48 or 32 English letters per line. (eq. 24 or 16 Chinese characters per line)
　　◆　Image printing support
　　◆　Multi-type barcode printing support & company logo pre-download support
　　◆　Support software updates
　　
　　Key Parameters:

ITEM	PARAMETERS
Print method	Termal dot line printing
Print color	Black
Print density	203dpi/inch(8dot/mm)
Print dots/line	384
Print speed	≥50mm/s
Paper load method	Easy load
Printing life	≥50Km
Print paper	Thermal Paper roll, 57.5±0.5mm(W)×?55mm(max)
Print width	48mm
Communication ports	RS232 serial port(POS-58BR), RS23 serial port & USB Port（POS-58BRU）
Detection function	Less paper
Compatible command set	ESC/POS
Character size	West word(8×16, 12×24), Chinese(16×16, 24×24)
Character set	ASCII, GB13000
Printing content	Chinese, Englis letters, Arabic numbers, Symbol, curve, Image, etc.
	Barcode: CODE39/93/128, CodeBAR, EAN-8, EAN-13, UPC-A/ITF, etc.
Image Printing method	Direct print/page mode
Power comsumption	Printing: ≤25W(Max), Standby: ≤1W
Power adapter	Inupt: AC100-240V 50/60Hz, Output: DC9V/3A
Net Weight	370g (Not including power adapter and paper roll)
Dimension(mm)	108×168×81(W×D×H)
Work Environment	Temperature: -10℃~40℃; Humidity: 20%~85% RH
Storage Environment	Temperature: -20℃~50℃; Humidity: 10%~95% RH
